Product Overview

DR-75 series is a 75 single group output enclosed power supply, which uses 85-264VAC full range AC input to provide 5V, 12V, 15V, 24V, 36V and 48V output. In addition to the efficiency of up to 91.5%, the design of smart fan with metal mesh enclosure enhances the heat dissipation ability, so that the DR-75 can work in the temperature range of - 30C to+70 ° C without a fan. The terminal system can easily meet international energy requirements. DR-75 has complete protection function; It complies with TUV EN60950-1, EN60335-1, EN61558-1/- 2-16, UL60950-1 and GB4943 international safety regulations. The DR-75 series provides a cost-effective solution for various industrial applications.

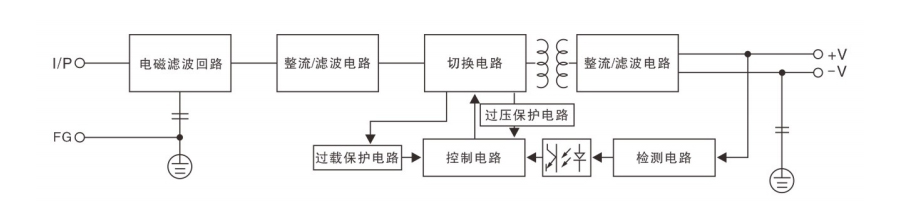

Principle Block Diagram

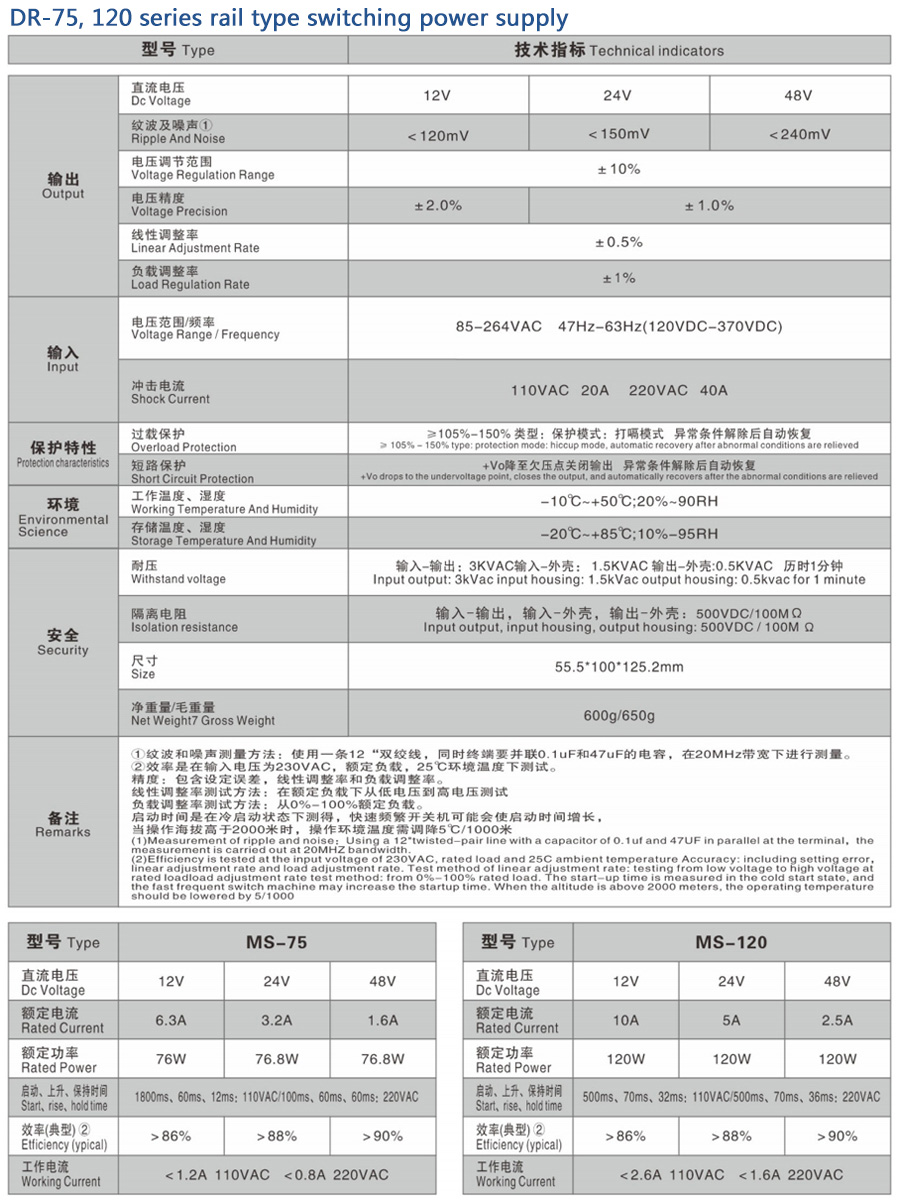

Product Technical Parameters
